FACADESOFT — curtain wall and glazing design
ADIT Ltd (ADIT)
Download from the vendor
www.adit.org.il

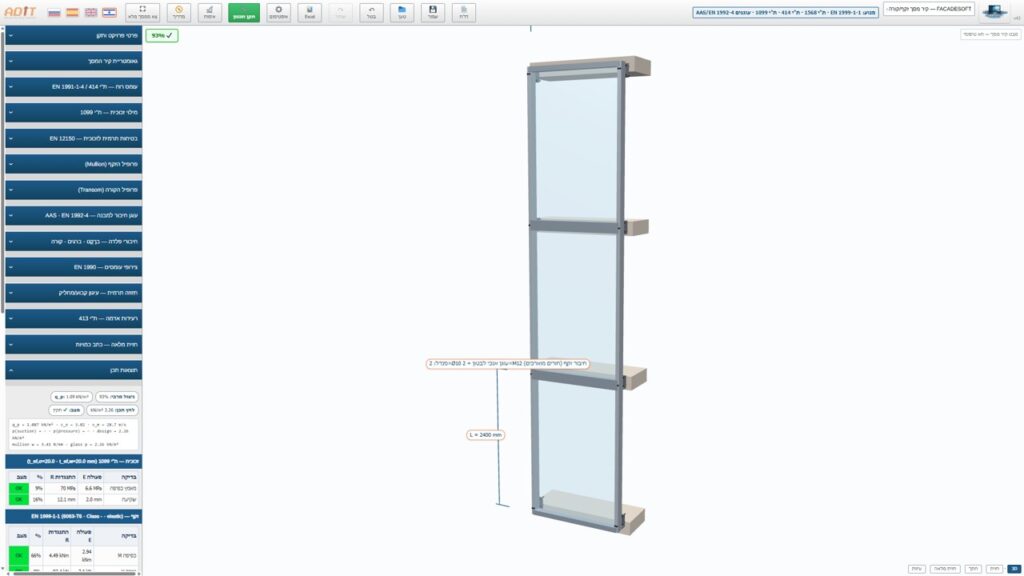

FACADESOFT designs curtain walls and glazing, covering the whole façade in one file: glass, mullion, transom, bracket, screws and anchor — under the same load combinations — through to the façade bill of quantities.
Why it stands out
- The whole chain, not one element — most façade programs check a profile, or the glass, or an anchor; here they are checked together.
- Glass to SI 1099 — with separate effective thicknesses for stress and deflection, and a thermal-stress check to EN 12150.
- Aluminium to EN 1999-1-1 — alloy, temper and section class.
- Seismic and thermal movement — an inter-storey drift check to SI 413, a module missing from almost every other façade program.
- Free, in the browser, and it takes drifts straight from SPACESOFT.
Disclosure: the owner of this site also owns ADIT.
Ratings & Reviews
| Licence type | Completely Free |
|---|---|
| Licence terms | Free to use, with no payment and no registration. It runs in the browser with nothing to install, and produces a full calculation report you can attach to a submission. |
| Platforms | Runs in the Browser |
| Engineering field | Architecture, Civil Engineering |
| Tool type | Structural Analysis |
| Vendor site | www.adit.org.il |
This link goes to the vendor site. EngiFree hosts no installers and distributes no cracked versions.
Last verified: 2026-09-02
